Trunnion Ball Valves manufacturers
Send Online Enquiry

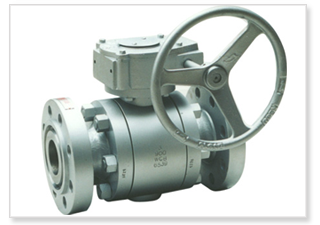

Trunnion mounted side entry steel ball valves are designed to meet API 6D / ISO 14313 and other referential international valve design standards, used for petroleum, petrochemical, oil, gas and any industrials.

Design Features

  • Structure : 3 pieces bolted body and cap
  • High shut-off sealing mechanism and low torque operation
  • Block and bleed function
  • Self cavity pressure relief
  • Fire safe design
  • Blow out proof stem construction
  • Anti static design
  • Locking device (for lever handle operation)
  • ISO 5211 actuator mounting
  • Emergency grease injection (option)
  • PN design can be available

General Design Standard

Design

API 6D / ISO 14313

Face to face

API 6D / ASME B16.10

End connection

ASME B16.5

Bore diameter

API 6D

Wall thickness

ASME B16.34

Product Range

Nominal pressure

Class 150 to 2500

Nominal size

NPS 1 to 24

Shell materials

Carbon and low alloy steel, Austenite Stainless steel, Duplex stainless steel, High alloy steel, Nickel based alloy

Seat materials

Reinforced PTFE, Modified PTFE, Nylon 6, Nylon 12, DEVLON, PCTFE, PEEK



Trunnion Ball Valves manufacturers

Standard Materials

Item

Un- corrosive

Low temp.

Corrosive

Sour service

Body

A105

LF2

F316 or 316

F51 or S31803

F55 or S32760

Cap

A105

LF2

F316 or 316

F51 or S31803

F55 or S32760

Ball

13Cr or A105+ENP

316 or LF2+ENP

F316 or 316

F51 or S31803

F55 or S32760

Stem

13Cr or 630

316 or 630

316 or S31803

S31803

S32760

Bottom stem

A105

LF2

316

S31803

S32760

Retainer

A105+ENP

LF2+ENP

316

S31803

S32760

Trunnion

A105 or WCB

LF2 or LCB

316 or CF8M

S31803 or CD3MN

S32760 or CD3MWCuN

Bonnet

A105

LF2

F316 or 316

S31803

F55 or S32760

Gland plate

A105

LF2

316

316

316

Spring

AISI 301

AISI 301

nconel X750

nconel X750

nconel X750

Bearing

CS+PTFE

CS+PTFE

316SS+PTFE

N06625+PTFE

N06625+PTFE

Bolt / Nut

B7/ 2H

L7 / 4

B8/ 8

B8/ 8

B8/ 8

O-ring

HNBR

L-NBR

FKM

FKM

FKM

Seat

R- PTFE (class up to 600) , Nylon 6 (class 900 and over)

Send Online Enquiry
