BS 4504 PN 16 Flanges Dimensions

Flanges Bs 4505 manufacturers

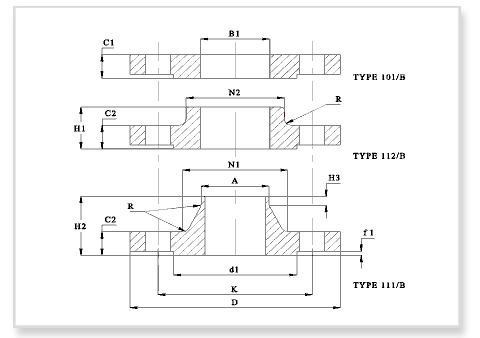

DN = Nominal size, D = Outside Diameter, A = Outside Dia of Neck , B1 = Bore of Type 101 & 112 Flange, C1 = Thickness of Plate Flange,
C2 = Thickness of Weld_Neck and Boss Flange , N1 = Dia of Weld Neck , N2 = Dia of Boss ,R = corner Radius, H1 = Length of Boss Flange,
H2 = Length of Weld Neck Flange, H3 = Length of Neck :

Note: The flanges shown are only a small part of the range covered in BS 4504.

The Facings shown are type B (Raised Face). Other Facings include:
Type A..Flat: Type C..Tongue: Type D..Groove Type E..Spigot: :Type F..Recess: Type G..O-ring Recess: Type H.,0-ring Groove:

Note : All Dimensions in mm
DN D C1 C2 H1 H2 H3 R A N1 N2 B1 d1 f1
10 90 14 14 20 35 6 3 17,2 28 30 18 40 2
15 95 14 14 20 35 6 3 21,3 32 35 22 45 2
20 105 14 14 24 38 6 4 26,9 39 45 27,5 58 2
25 115 16 16 24 38 6 4 33,7 46 52 34,5 68 2
32 140 18 16 26 40 6 5 42,4 56 60 43,5 78 2
40 150 18 16 26 42 7 5 48,3 64 70 49,5 88 3
50 165 20 18 28 45 8 5 60,3 74 84 61,5 102 3
65 185 20 18 32 45 10 6 76,1 92 104 77,5 122 3
80 200 20 20 34 50 10 6 88,9 110 118 90,5 138 3
100 220 22 20 40 52 12 6 114,3 130 140 116 162 3
125 250 22 22 44 55 12 6 139,7 158 168 141,5 188 3
150 285 24 22 44 55 12 8 168,3 184 195 170,5 212 3
200 340 26 24 44 62 16 8 219,1 234 246 221,5 268 3
250 405 29 26 46 70 16 10 273 288 298 276,5 320 3
300 460 32 28 46 78 16 10 323,9 342 350 327,5 378 4
350 520 35 30 57 82 16 10 355,6 390 400 359 438 4
400 580 38 32 63 85 16 10 406,4 444 456 411,0 490 4
450 640 42 34 68 87 16 12 457,0 490 502 462,0 550 4
500 715 46 34 73 90 16 12 508,0 546 559 513,5 610 4
600 840 52 36 83 95 18 12 610,0 650 658 616,5 725 5
700 910 60 36 83 100 18 12 711,0 750 760 - 795 5
800 1025 68 38 90 105 20 12 813,0 848 864 - 900 5
900 1125 76 40 94 110 20 12 914,0 948 968 - 1000 5
1000 1255 84 42 100 120 22 12 1016,0 1056 1072 - 1115 5
1200 1485 98 48 - 130 30 12 1220,0 1260 - - 1330 5
1400 1685 - 52 - 145 30 12 1420,0 1465 - - 1530 5
1600 1930 - 58 - 160 35 12 1620,0 1668 - - 1750 5
DN D C1 C2 H1 H2 H3 R A N1 N2 B1 d1 f1

Flange Bolting

K = Bolt Circle Diameter, L = Dia Of Bolt Hole,
No = Number of Holes , Size = Size of Bolts


DN
K
L
No
Size
mm
mm
mm
-
mm
10
60
14
4
M12
15
65
14
4
M12
20
75
14
4
M12
25
85
14
4
M12
32
100
18
4
M16
40
110
18
4
M16
50
125
18
4
M16
65
145
18
8**
M16
80
160
18
8
M16
100
180
18
8
M16
125
210
18
8
M16
150
240
22
8
M20
200
295
22
12
M20
250
355
26
12
M24
300
410
26
12
M24
350
470
26
16
M24
400
525
30
16
M27
450
585
30
20
M27
500
650
33
20
M30
600
770
36
20
M33
700
840
36
24
M33
800
950
39
24
M36
900
1050
39
28
M36
1000
1170
42
28
M39
1200
1390
48
32
M45
1400
1590
48
36
M45
1600
1820
56
40
M52
DN
K
L
No
Size


BS Flange Dimensions
BS4504 PN 16 Dimensions BS4504 PN 25 Dimensions BS4504 PN 40 Dimensions
