Class 250 Flanges |
|
|
Class 250 (300 psi*) |
|
|

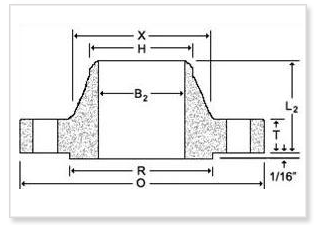

Weld Neck |

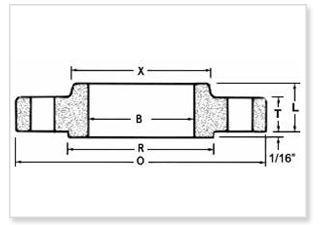

Slip On |
|
|
|
|
Weld Neck
|
Slip-On |
|
|
|
|
Bore |
LTH |
Drilling |
Weights |
Nom. Size |
OD |
Thickness |
OD of RF |
Dia at Base |
WN |
SO |
Weld Neck |
SO |
Bolt Circle |
Bolt Length |
Hole Dia |
# Holes |
Weld Neck |
Slip-on |
Blind |
|
O |
T |
R |
X |
B2 |
B |
L2 |
L |
|
|
|
|
|
|
|
26 |
38.25 |
2.81 |
32.44 |
30.50 |
|
26.25 |
5.81 |
4.75 |
34.50 |
10.00 |
1.88 |
28 |
534 |
531 |
916 |
28 |
40.75 |
2.94 |
34.94 |
33.00 |
28.25 |
5.94 |
5.00 |
37.00 |
10.25 |
1.88 |
28 |
629 |
637 |
1095 |
30 |
43.00 |
3.00 |
37.19 |
35.25 |
30.25 |
6.00 |
5.00 |
39.25 |
10.50 |
1.88 |
28 |
702 |
707 |
1236 |
32 |
45.25 |
3.12 |
39.44 |
37.50 |
32.25 |
6.12 |
5.12 |
41.50 |
10.75 |
1.88 |
28 |
793 |
801 |
1424 |
34 |
47.50 |
3.25 |
41.44 |
39.50 |
34.25 |
6.25 |
5.25 |
43.50 |
11.25 |
1.88 |
28 |
882 |
889 |
1649 |
36 |
50.00 |
3.38 |
43.69 |
41.50 |
36.25 |
6.38 |
5.38 |
46.00 |
12.00 |
2.13 |
32 |
969 |
970 |
1884 |
38 |
52.25 |
3.44 |
45.69 |
43.50 |
38.25 |
6.44 |
5.50 |
48.00 |
12.00 |
2.13 |
32 |
1057 |
1062 |
2094 |
40 |
54.25 |
3.56 |
47.94 |
45.75 |
40.25 |
6.56 |
5.50 |
50.25 |
12.25 |
2.13 |
36 |
1158 |
1172 |
2336 |
42 |
57.00 |
3.69 |
50.44 |
47.75 |
42.25 |
6.94 |
5.62 |
52.75 |
12.50 |
2.125 |
36 |
1318 |
1288 |
2673 |
44 |
59.25 |
3.75 |
52.69 |
49.75 |
44.25 |
7.00 |
5.75 |
55.00 |
12.75 |
2.13 |
36 |
1423 |
1397 |
2935 |
46 |
61.50 |
3.88 |
54.94 |
51.75 |
46.25 |
7.12 |
5.88 |
57.25 |
13.00 |
2.13 |
40 |
1536 |
1510 |
3272 |
48 |
65.00 |
4.00 |
58.44 |
54.00 |
48.25 |
7.25 |
6.00 |
60.75 |
13.25 |
2.13 |
40 |
1824 |
1797 |
3768 |
Dimensions are in inches. Weights are in pounds. |
Note: *AWWA Pressure rating at atmospheric temperature is 300 psi. These flanges have the same OD and drilling as ANSI/ASME B16.1 class 250 cast iron pipe and flanged fittings. |
|
