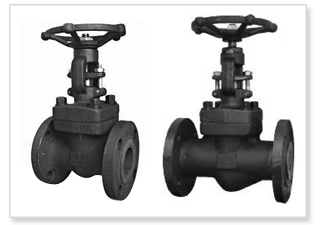

Find the perfect Forged Steel Globe Valves | making good Forged Steel Globe Valves | Forged Steel Globe Valves Top Class Quality | Falcon manufacturers of Forged Steel Globe Valves India

Falcon forged steel globe Valves are compact in design, and are available in the pressure class range of 800 to 2500 and sizes ranging from 1/4" to 2" for various applications such as hydro carbon service, hydrogen service, cryo-application, sea water de-salination projects and sour application (NACE MR-01/75)

Specification Chart

Salient Features

• Bolted body-bonnet design for Valves up to Class 800.
  Valves with welded bonnet also available on request
• Screwed with seal-welded body-bonnet design for Valves of Class 1500
• Bellows-sealed Globe Valves available in Class 800
• Bolted body-bonnet joints provided with spiral-wound stainless steel gasket and graphite filler for maximum protection against   leaks
• Die-formed graphite inner packing rings and braided graphite end rings with Inconel wire reinforcement and corrosion inhibitor
• Rolled ACME thread on stem for smooth operation
• Tapered shoulder on the stem for back seating
• Self-aligning type gland assembly with stud-and-nut tightening
• Integral hard-faced body seat for globe Valves
• Globe Valves can be offered with electrical actuators
• Austenitic SS forging for body and bonnet of Cryogenic
Valves, resulting in excellent impact strength, minimal heat loss and resistance to corrosion
• Valves can be offered to NACE MR-0175 and other special
  NACE requirements
• Valves can be supplied with IBR certification
